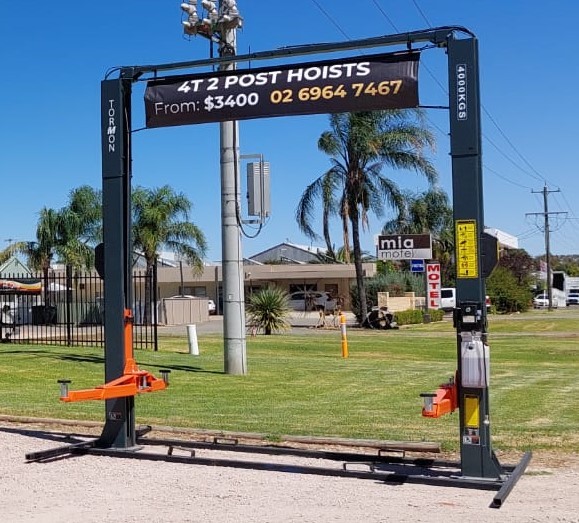

Tormon t4000cf
4.0 Tonne 2 Post Clear Floor Hoist
Features
- Clear floor overhead single point manual release
- 4,000kg lifting capacity
- Chain Drive
- Screw adjustable rubber pads & 100mm 4x4 adapters included.
- 2 x 2-stage and 2 x 3-stage lifting arms
- Overhead limit switch
- Dynamically tested with 115% of rated capacity
- 5 years structural & 2 year hydraulics & 1 year electrical warranty
- Color: Granite Grey (RAL 7026) + Reinorange (RAL 2004)
- Certified to AS/NZS2550.9 standards

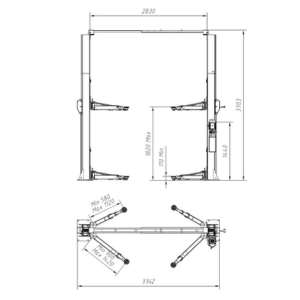

Technical Specifications
- Lifting Capacity: 4,000kg
- Overall Height: 3703mm
- Width Inside Columns: 2830mm
- Max Lifting Height: 1980mm with 4x4 adaptors, 1820mm without 4x4 adaptors
- Min Height: 110mm
- Drive Through: 2530mm
- Lifting Time: 50 Sec.
- Lowering Time: 40 Sec.
- Motor Power: 2.2KW
- Motor Voltage: 240 V
- Rated Frequency: 50 Hz
- Shipping Weight: 650kg
- Shipping Size: 2800x540x1100mm
