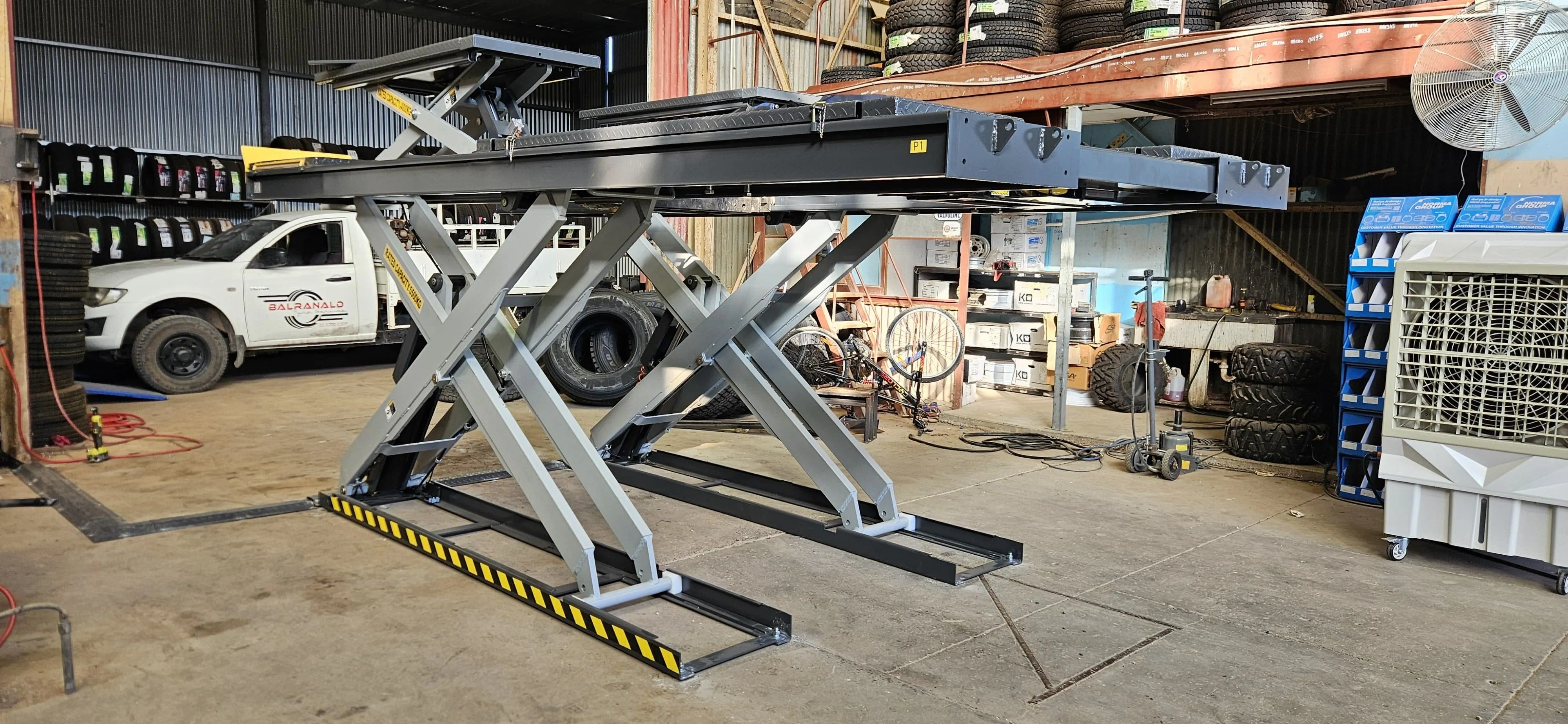

steiner lt55dsa 5.5t double scissor alignment lift
FEATURES
• Synchronization cylinder system equipped with hose burst valves.• 24V control system with photocell device.• Safety stop device at height of 300mm. For added safety both control buttons are needed to lower the lift from 300mm to ground.• Skid proof diamond runways and adjustable turnplate blocks.• Self-lubricating UHMW polyethylene sliders and bronze bushes.

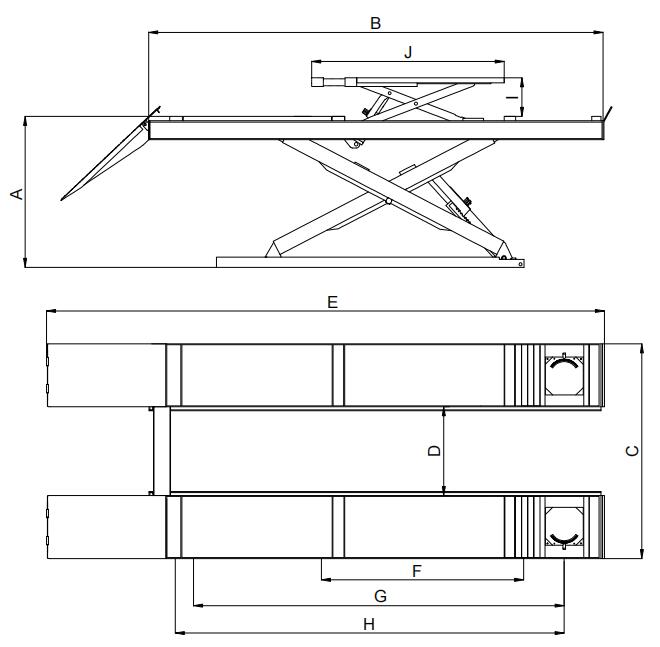

SPECIFICATIONS
Model LT550DSALifting Capacity 5500kgLifting Time 55SLifting Height 1870mmMinimum Height 320mm
Runway Length 4991mmOverall Width 2190mmWidth Between Runways 940mmOverall Length(Inc. Ramps) 6527mmMin. Four Wheel Align 2180mmMax. Four Wheel Align 4230mmMax. Two Wheel Align 4390mmLifting Capacity Of Sub Lift 4000kgLifting Height of Sub Lift 420mmRunway Length of Sub Lift 1600~1880mmGross Weight 2588kgMotor 4.0HP
