steiner lt400s-mr

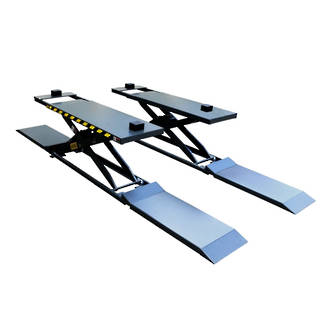

4 Tonne Mid-Rise Scissor Lift
Dual hydraulic synchronization & hydraulic locking systems ensure safe and smooth lifting and lowering of the platform.Thickened steel construction.Designed and manufactured to CE standard ensuring high quality, durability, and safety.Adjustable lift platform length, applicable to vehicles with different wheelbases.Ideal for low clearance applications with two-stage drive-in ramps and a minimum height of 135mm.Maximum lifting height 1200mm
Certified to Australian safety standards.
SPECIFICATIONS:
Lifting capacity 4000kg
Overall length 3980mm
Runway length 1560-1960mm
Max lifting height 1200mm
First Stage Ramp Height 65mm
Min lifting height 135mm
Lifting time 29 sec
Overall width 1950mm
Width between runways 750mm
Gross weight 811kg
Motor 3.0HP
