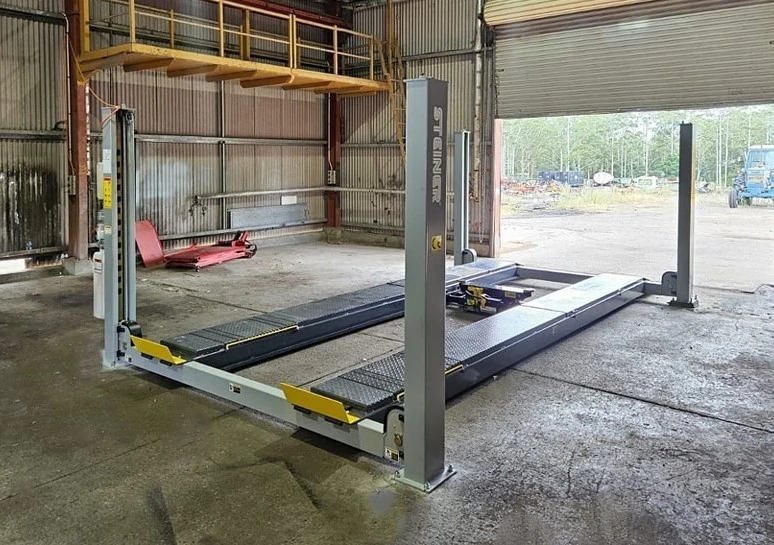

steiner lt465A 6.5 tonne wheel alignment hoist
- This long runway alignment hoist is ideal for Workshops and service centres that require a strong lift able to accommodate vehicles with a longer wheelbase.
- With adjustable turntable positions, back up locks and the option to mount controls on either side of the hoist, the Steiner LT465A is an exceptional four post hoist.
- Features
- 6224mm Runway length (excluding ramp length).
- Adjustable turntable positions to accommodate different wheelbases.
- Cable driven electric hydraulic power system.
- Electric-air controls.
- Mechanical self-lock with air driven safety release.
- Dual safety device acts as back up to mechanical locks.
- Controls can be mounted to either side.
- Optional 3.5T Rolling Jack

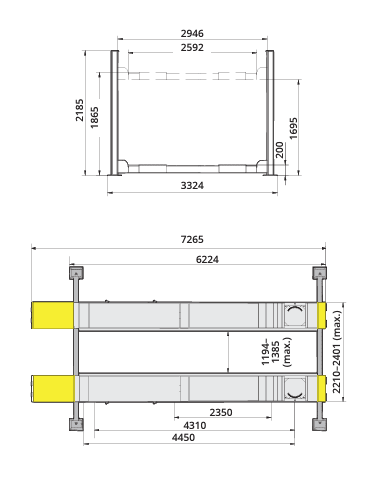

- Specifications
- Lifting capacity 6500kg
- Lifting time 76 Sec
- Overall Length ( Inc. Ramps) 7265mm
- Overall Length ( No Ramps) 6224mm
- Overall Width 3324mm
- Width Between Posts 2946mm
- Max. Lifting height 1865mm
- Overall Height 2185mm
- Minimum Height 200mm
- Max. Underneath Height 1695mm
- Drive-Thru Clearance 2592mm
- Width Between Runway 1194mm-Max. 1385mm
- Outside Edge of Runways 2210mm-Max.2401mm
- Motor 4.0HP
- Gross Weight 1345kg
