PACKAGE DEAL

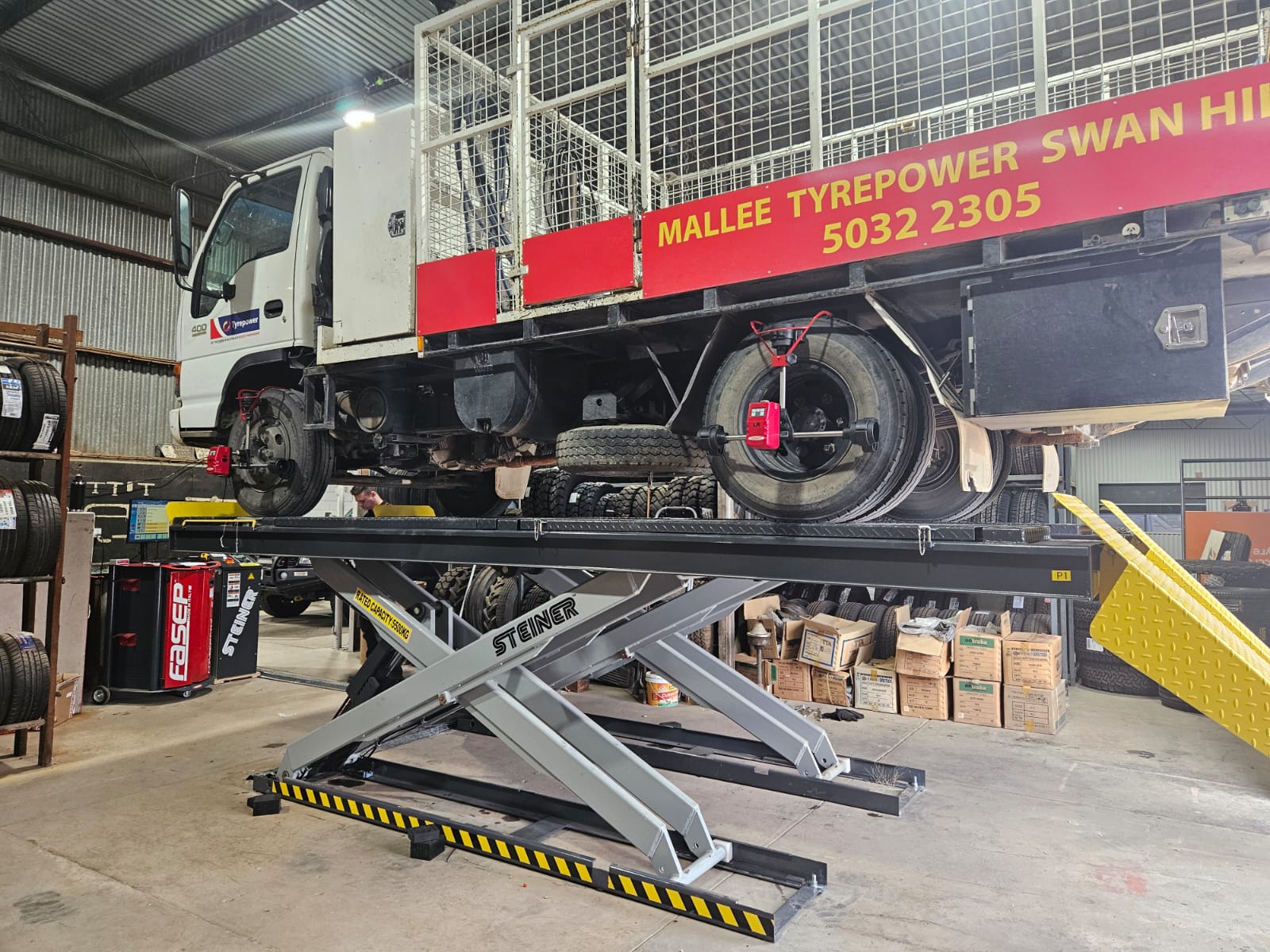

STEINER LT55DSA 5.5t Double Scissor Alignment Hoist & FASEP VCOK Wheel Aligner
.jpg@webp)
FASEP VCOK Wheel Aligner
The world's fastest, most accurate wheel aligner!
Features
Fasep Wheel Aligners use intuitive, but advanced technology to bring you the easiest to use, most accurate wheel alignment systems on the market. Utilizing the latest technology, Fasep wheel aligners are 100% designed, built and tested in Italy.The VOC-K2 Aligner reduces preparation time by up to 80% thanks to its simple, user-friendly software and contact clamps.
Specs
- Powerful computer, with easy-to-operate software
- Each Fasep Wheel Aligner comes with a highly specified Intel computer running the latest Windows software.
- 27" Widescreen LED Colour Monito
- Contact Clamps (No run out required)
- Vehicle Specification Database
- Wintrax 2 Sensors
- Fasep ATM System - Optional extra

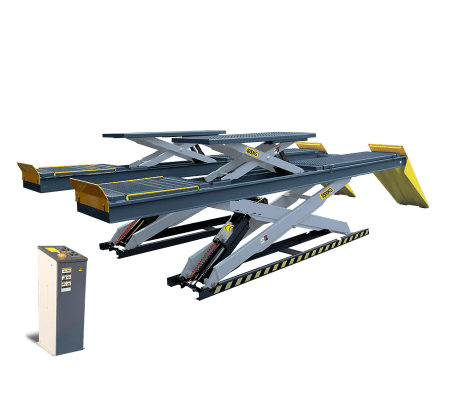

- Steiner Double Scissor Alignment Hoist:
- • Synchronization cylinder system equipped with hose burst valves.
- • 24V control system with photocell device.
- • Safety stop device at height of 300mm. For added safety both control buttons are needed to lower the lift from 300mm to ground.
- • Skid proof diamond runways and adjustable turnplate blocks.
- • Self-lubricating UHMW polyethylene sliders and bronze bushes. Lifting Capacity 5500kg
- Lifting Time 55S
- Lifting Height 1870mm
- Minimum Height 320mm
- Runway Length 4991mm
- Overall Width 2190mm
- Width Between Runways 940mm
- Overall Length(Inc. Ramps) 6527mm
- Min. Four Wheel Align 2180mm
- Max. Four Wheel Align 4230mm
- Max. Two Wheel Align 4390mm
- Lifting Capacity Of Sub Lift 4000kg
- Lifting Height of Sub Lift 420mm
- Runway Length of Sub Lift 1600~1880mm
- Gross Weight 2588kg
- Motor 4.0HP
