LS Series air compressor
Ideally suited for medium-to-large industrial applications with continuous compressed air demand and working pressure of up to 10 bar. The Senator LS series comprises seven models of electric rotary air compressor sets that are powerful, well equipped, base-mounted units supplied ready for use.
.jpg)
LS18

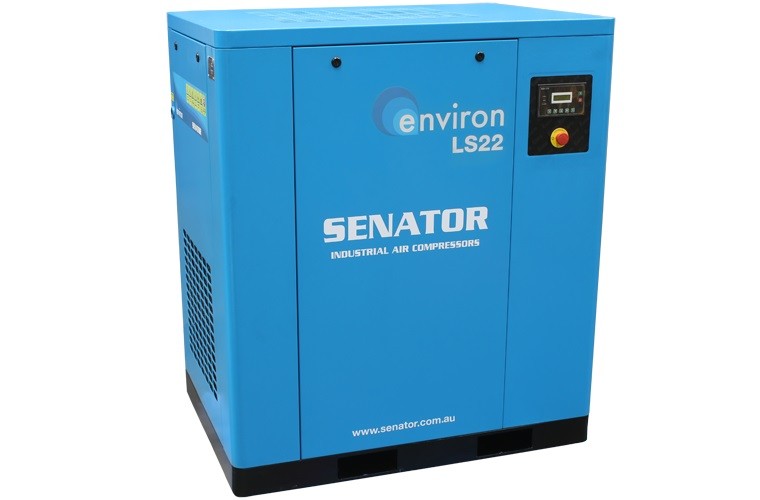

LS22

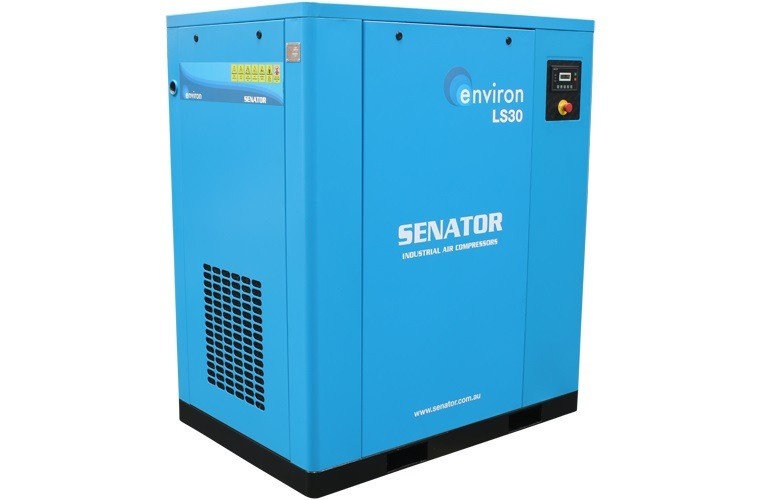

LS30

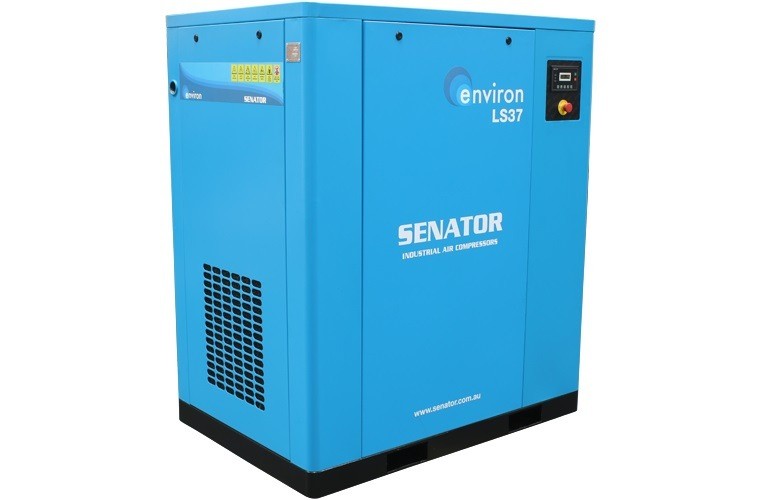

LS37

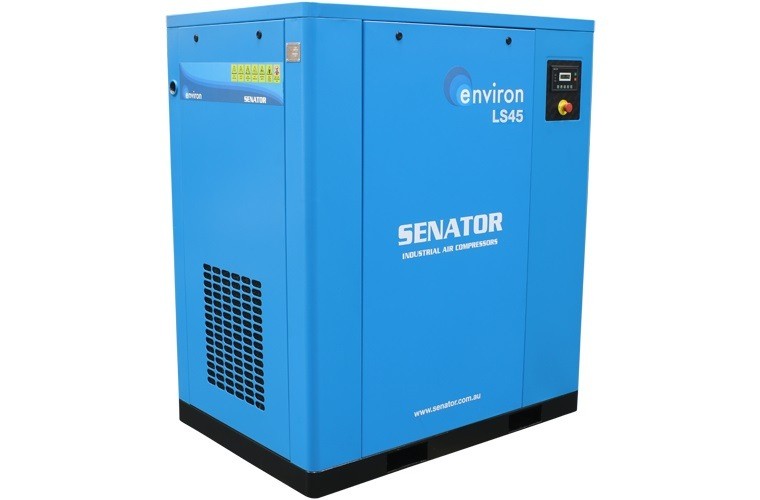

LS45
LS55
Motor Power: 18.5 kW (25 hp)Free Air Delivery: 3.08 m³/min (109 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 70 dB(A)Air End Speed: 2,570 rpmWeight: 562 kgAir Outlet: 1 inch BSP
Motor Power: 22 kW (30 hp)Free Air Delivery: 3.58 m³/min (127 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 71 dB(A)Air End Speed: 3,030 rpmWeight: 636 kgAir Outlet: 1 inch BSP
Motor Power: 30 kW (40 hp)Free Air Delivery: 4.96 m³/min (175 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 71 dB(A)Air End Speed: 2,360 rpmWeight: 900 kgAir Outlet: 1-1/2 inch BSP
Motor Power: 37 kW (50 hp)Free Air Delivery: 6.38 m³/min (225 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 72 dB(A)Air End Speed: 3,118 rpmWeight: 916 kgAir Outlet: 1-1/2 inch BSP
Motor Power: 45 kW (60 hp)Free Air Delivery: 7.18 m³/min (254 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 73 dB(A)Air End Speed: 3,581 rpmWeight: 969 kgAir Outlet: 1-1/2 inch BSP
Motor Power: 55 kW (75 hp)Free Air Delivery: 9.58 m³/min (338 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 73 dB(A)Air End Speed: 2,350 rpmWeight: 1,419 kgAir Outlet: 2 inch BSP

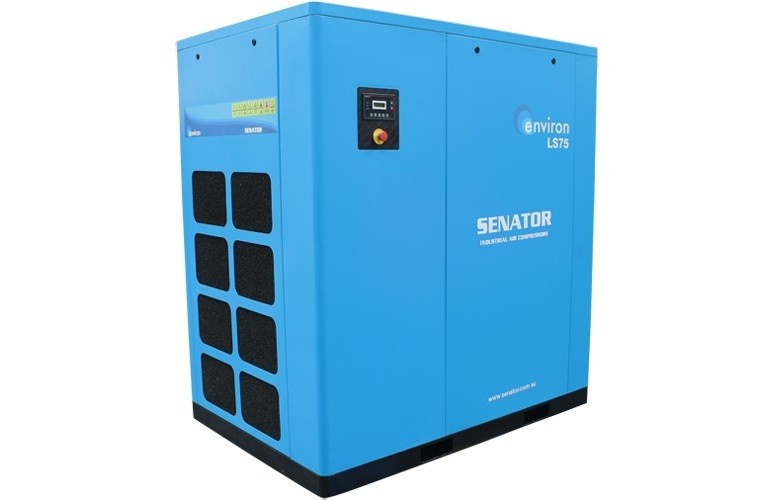

LS75
Motor Power: 75 kW (100 hp)Free Air Delivery: 12.33 m³/min (435 cfm)Working Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 74 dB(A)Air End Speed: 3,097 rpmWeight: 1,579 kgAir Outlet: 2 inch BSP
LSV Series air compressor
The Senator LSV Series incorporates state-of-the-art variable speed drive technology that saves energy by adjusting the compressor’s output to match fluctuating air demand. These well equipped, high efficiency compressor sets are the smart choice for industrial users who want to reduce their electricity costs.

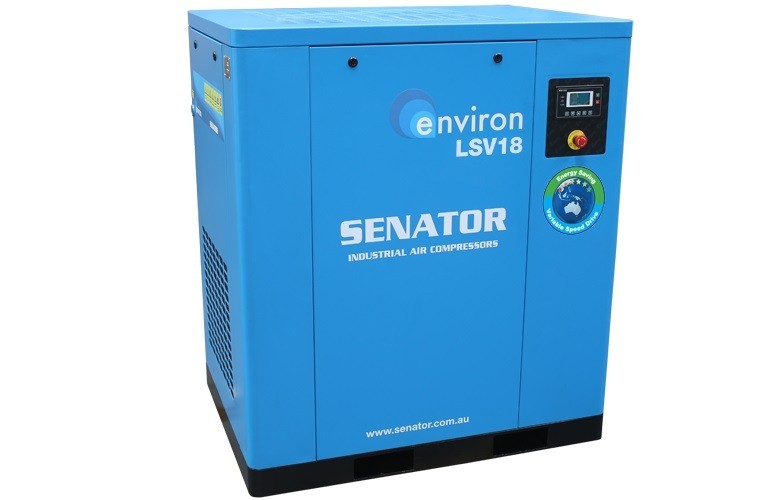

LSV18
LSV22
LSV30
LSV37

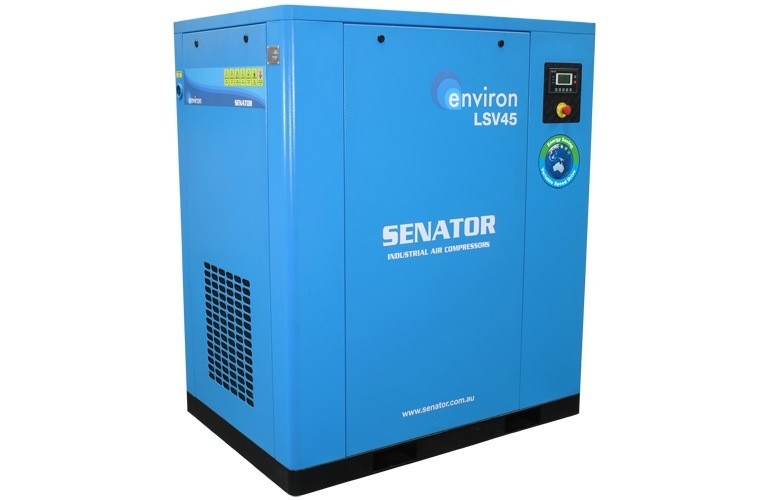

LSV45
LSV55
Motor Power: 18.5 kW (25 hp)Free Air Delivery: 1.08 - 3.08 m3/min
Free Air Delivery: 38 - 109 cfmWorking Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 71 dB(A)Air End Speed: 900 - 2,570 rpmAir Outlet: 1 inch BSP
Motor Power: 22 kW (30 hp)Free Air Delivery: 1.25 - 3.58 m3/minFree Air Delivery: 44 - 127 cfmWorking Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 71 dB(A)Air End Speed: 1,061 - 3,030 rpmAir Outlet: 1 inch BSP
Motor Power: 30 kW (40 hp)Free Air Delivery: 1.74 - 4.96 m3/minFree Air Delivery: 61 - 175 cfmWorking Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 71 dB(A)Air End Speed: 826 - 2,360 rpmAir Outlet: 1-1/2 inch BSP
Motor Power: 37 kW (50 hp)Free Air Delivery: 2.23 - 6.38 m3/minFree Air Delivery: 79 - 225 cfmWorking Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 71 dB(A)Air End Speed: 1,091 - 3,118 rpmAir Outlet: 1-1/2 inch BSP
Motor Power: 45 kW (60 hp)Free Air Delivery: 2.51 - 7.18 m3/minFree Air Delivery: 89 - 254 cfmWorking Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 72 dB(A)Air End Speed: 1,253 - 3,581 rpmAir Outlet: 1-1/2 inch BSP
Motor Power: 55 kW (75 hp)Free Air Delivery: 3.35 - 9.58 m3/minFree Air Delivery: 118 - 338 cfmWorking Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 73 dB(A)Air End Speed: 823 - 2,350 rpmAir Outlet: 2 inch BSP

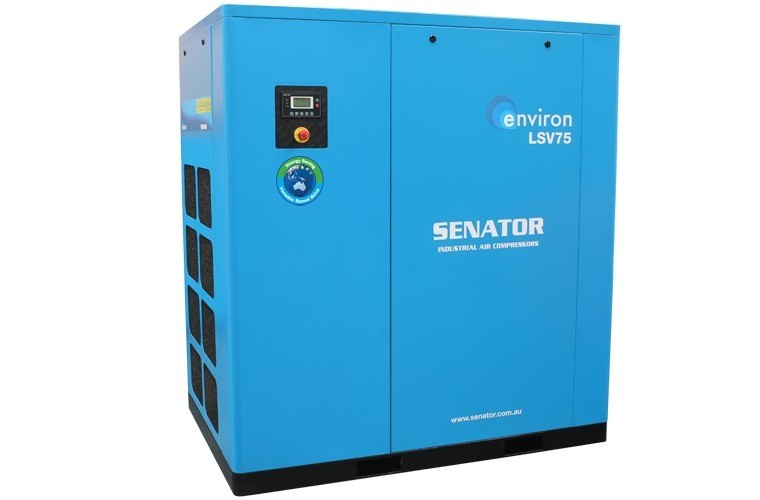

LSV75
Motor Power: 75 kW (100 hp)Free Air Delivery: 4.32 - 12.33 m3/minFree Air Delivery: 152 - 435 cfmWorking Pressure: 8 bar (116 psi)Optional Pressures: 7-10 bar (102-145 psi)Noise Level @ 1m: 74 dB(A)Air End Speed: 1,084 - 3,097 rpmAir Outlet: 2 inch BSP
