HydrAULIC rAMS

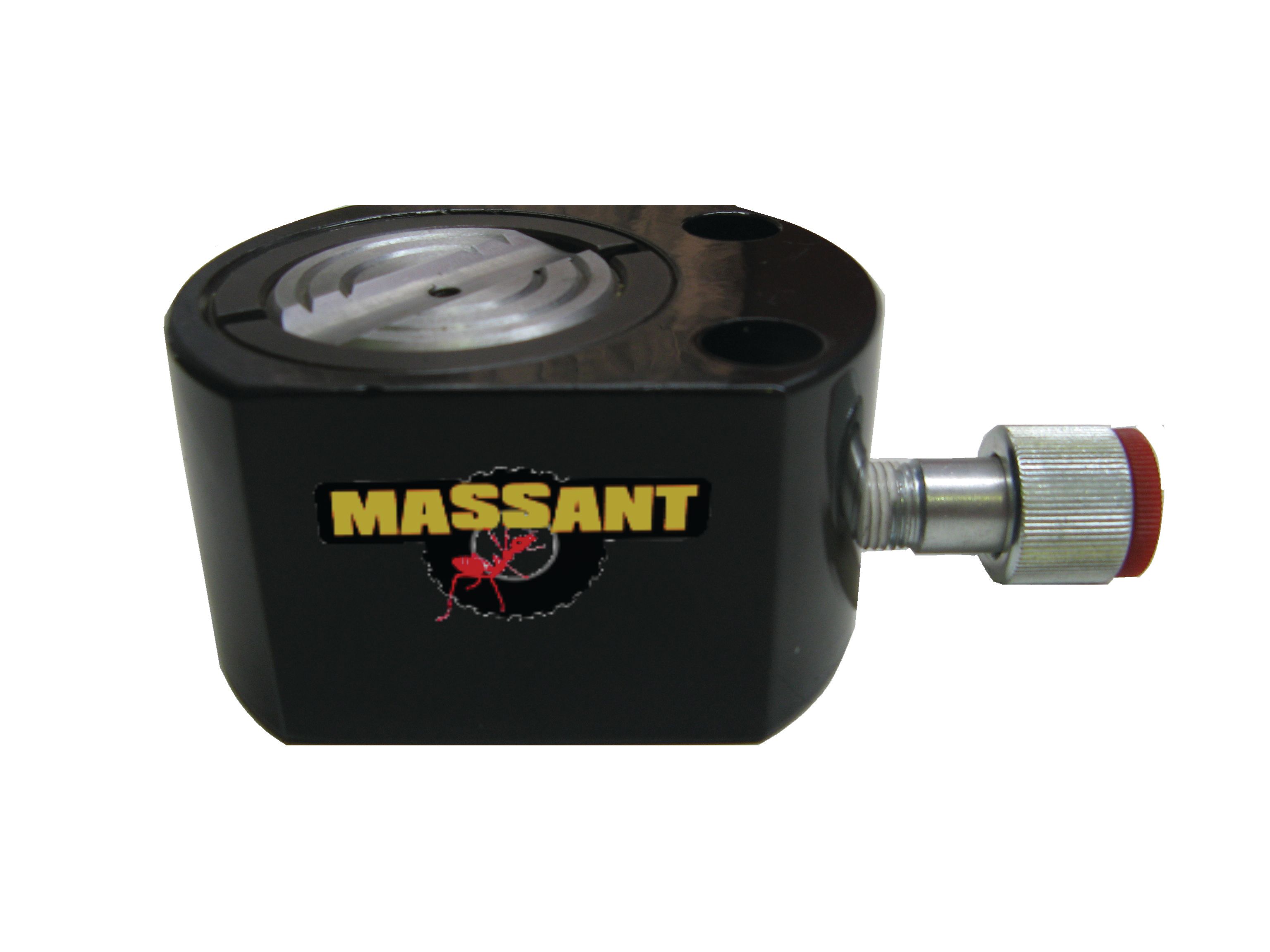

SHORT REACH POWER RAM

TDPSR010• 10 Tonne• Minimum Height:45mm• Lift: 11mm
TDPSR020• 20 Tonne• Minimum Height:60mm• Lift: 17mm

TDPSR050• 50 Tonne• Minimum Height:75mm• Lift: 19mm

TDPSR100• 100 Tonne• Minimum Height:95mm• Lift: 25mm

10 TONNE POWER RAM

TD10PR2”• Min Height: 150mm• Max Height: 200mm

 TD10PR4”• Min Height: 165mm• Max Height: 266mm

TD10PR6”• Min Height: 300mm• Max Height: 454mm

 TD10PR8”• Min Height: 305mm• Max Height: 503mm

 TD10PR10”• Min Height: 356mm• Max Height: 610mm

HYDRAULIC POWER RAMWITH MULTI SELECTION

 TD10MPR• 10 Tonne• Min Height: 45mm• Max Stroke: 25mm

TD20MPR• 20 Tonne• Min Height: 51mm• Max Stroke: 26mm

TD30MPR• 30 Tonne• Min Height: 58mm• Max Stroke: 53mm

 TD50MPR• 50 Tonne• Min Height: 65mm• Max Stroke:64mm

TD100MPR• 100 Tonne• Min Height:85mm• Max Stroke: 75mm
