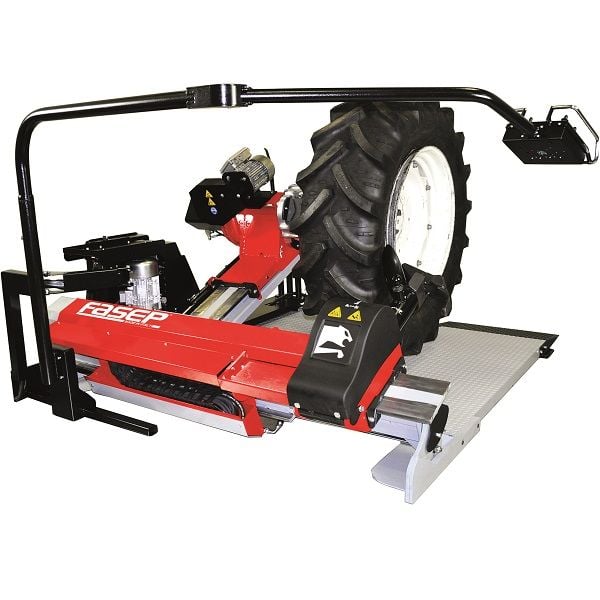

RGU588E Super Automatic Truck tyre Changer
A professional unit, super-automatic, designed for tyre service shops with heavy work load of commercial, agriculture and earth-moving wheels up to 46" (56" optionally).
Suitable for normal and tubeless tires.
Self-centering hydraulic chuck with 4 clamping jaws.
Super Automatic Truck Tyre Changer for Trucks, Agricultural and OTR/Earthmoving vehiclesSuitable for groove rims and split ring rimsSuitable for normal and tubeless tires2 speed MotorClockwise and anticlockwise rotation of the chuckUniversal toolheadChuck on fixed armHydraulic lifting of chuck (up and down)Electro-Hydraulic displacement (left - right) of the arm that contains the toolheadToolhead with automatic lifting and rotation (hydraulic)Mobile remote control (low voltage)Mobile ramp for easy positioning of the wheel
- Rim max diameter: 12 -46" (58" optional)
- Max wheel weight: 2000kg
- Max wheel diameter: 2600 mm (102")
- Max wheel width: 1530 mm (60")
- Hydraulic pump motor: 4,4 kW (6.0 Hp)
- Chuck Gearbox motor: 1,5 kw (2.0 Hp)
- Spindle shaft working height min: 365mm
- Bead breaking force (in/out): 37.6 kN
- Max rotation torque: 3,6 kN
- Clamping force max: 48 kN
- Rim central hole min: 80-1200 mm
- Noise :< 70 dB (A)
