Comec Flywheel grinder
.png)
RTV530
- The RTV530 has been engineered specifically for resurfacing flywheels and clutch friction plates with a maximum diameter of 510 mm (20”).The sturdy structure of some elements, like the base, the column and the rotary table, ensure the maximum level of rigidity and work precision. The clutch pressure plate and flywheel grinder is equipped with an efficient cooling system, complete with a pump and an easy-to-clean settling tank. The complete standard equipment ensures an extremely fast and accurate set-up of the workpieces. Moreover, the RTV530 is suitable for grinding brake discs of cars and trucks for which this kind of machining is required.
- Images may show the product equipped with optional accessories
- Cooling system
- Splash and safety guard
- Taper grindwheel for cast iron
- Grinding wheel dresser
- Wheel dressing diamond
- Set of centering cones
- Set of supporting rings
- Blocking screws
- Wrench set
TECHNICAL FEATURESMaximum diameter of work 20"Diameter of the rotary table 15 3/8Distance between rotary table and wheel 0-7 7/8Taper grinding wheel diameter 5 7/8Rotary table speed 16 RPMGrinding wheel speed 2860 RPMHead motor 3 hp - 2.2 kwTable motor 0.70 hp - 0.51 kwCoolant pump motor 0.15 hp - 0.10 kwDimensions (LxWxH) 27Ω"x38?x64"Weight 816 lbs

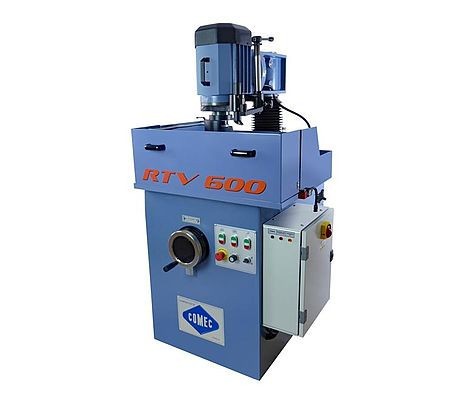

RTV600
The grinding machine RTV600 represents the best and most advanced solution in terms of reconditioning of flywheels, clutch friction plates and pressure plates in industrial vehicles. RTV600 it is also suitable for fine grinding of any other circular piece lke discs, rings or flanges.

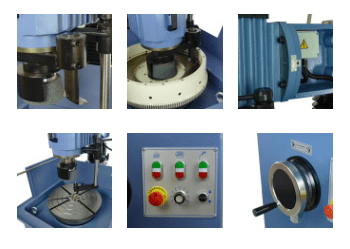

The flywheel surface grinder offers a high rigidity torsion, thanks to the use of cast iron for the base. The rotary table lies on a surface constantly lubricated with oil that helps in reducing the friction and preserving the machine at the same time and it can also be supplied with a magnetic plate.The 4 kW motor grants a sufficient power to work any kind of material with high depths of cutting. For all these reasons the RTV600 meets the requirements of the most demanding mechanics.
The flywheel surface grinder offers a high rigidity torsion, thanks to the use of cast iron for the base. The rotary table lies on a surface constantly lubricated with oil that helps in reducing the friction and preserving the machine at the same time and it can also be supplied with a magnetic plate.The 4 kW motor grants a sufficient power to work any kind of material with high depths of cutting. For all these reasons the RTV600 meets the requirements of the most demanding mechanics.
- Head power feed
- Splash and safety guard
- Cooling plant complete with pump and settling tank
- Grinding wheel dresser
- Wheel dressing diamond
- Cup grinding wheel for cast iron
- Set of centering cones
- Set of supporting rings
- Dial gauge with support
- Blocking screws
- Lubricant for slides
- Emulsifiable oil
- Wrench set
TECHNICAL FEATURESMaximum grinding diameter 630mmRotary table diameter 450mmMax height table-weight 215mmTaper grinding wheel speed 150mmRotary table speed 16 rpmGrinding wheel speed 2800rpmPower head motor RTV 600 / RTV 612 5.5hp (4kw) / 12hp (9kw)Power table motor 0.75hp (0.55kw)Power rapid feed head motor 0.25hp (0.18kw)Dimensions (LxWxH) 1200x900x1600mmWeight 710kg
