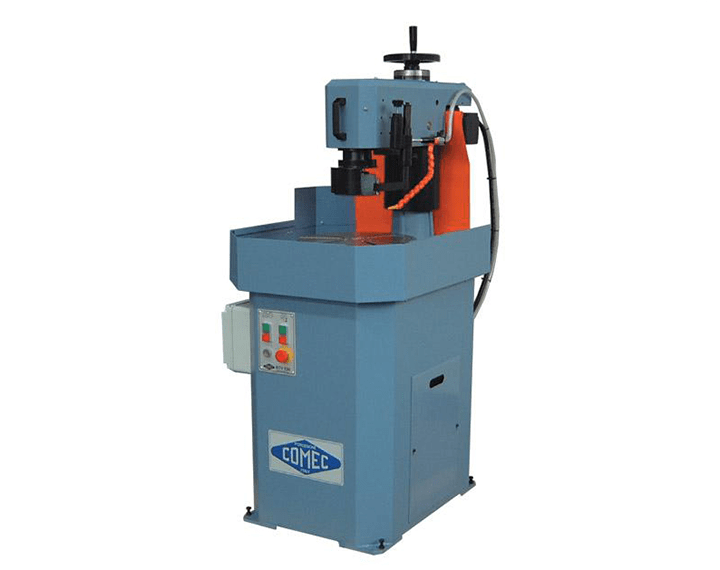

COMEC RTV530 Flywheel Grinder

The RTV530 has been engineered specifically for resurfacing flywheels and clutch friction plates with a maximum diameter of 510 mm (20”).The sturdy structure of some elements, like the base, the column and the rotary table, ensure the maximum level of rigidity and work precision. The clutch pressure plate and flywheel grinder is equipped with an efficient cooling system, complete with a pump and an easy-to-clean settling tank. The complete standard equipment ensures an extremely fast and accurate set-up of the workpieces. Moreover, the RTV530 is suitable for grinding brake discs of cars and trucks for which this kind of machining is required.
Images may show the product equipped with optional accessories

- Cooling system- Splash and safety guard- Taper grindwheel for cast iron- Grinding wheel dresser- Wheel dressing diamond- Set of centering cones- Set of supporting rings- Blocking screws- Wrench set

Maximum diameter of work 20"Diameter of the rotary table 15 3/8Distance between rotary table and wheel 0-7 7/8Taper grinding wheel diameter 5 7/8Rotary table speed 16 RPMGrinding wheel speed 2860 RPMHead motor 3 hp - 2.2 kwTable motor 0.70 hp - 0.51 kwCoolant pump motor 0.15 hp - 0.10 kwDimensions (LxWxH) 27Ω"x38?x64"Weight 816 lbs
