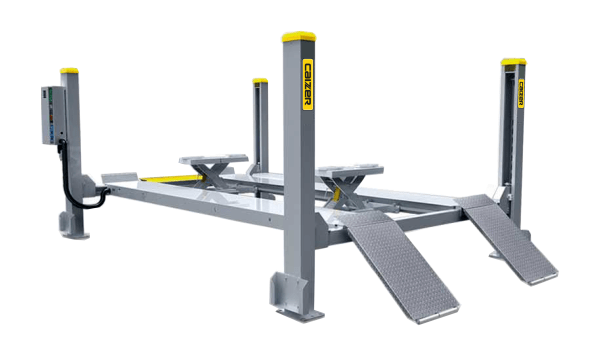

caIZER F45 4.5T 4 POST HOIST

FEATURES

Hydraulic cylinder located under platform making it perfectly protected.High-resistant, galvanised and pre-stretched steel cables.Large-diameter pulleys with replaceable DU bushes.Adjustable parking ratchet rails ensure that the platforms and cross members are horizontal within 4-wheel alignment tolerances.Automatic 4-point spring-loaded brake system in the event of cable breakage also ensures complete stability during parking.Extra long platforms and extra width between posts for the lifting of light commercial vehicles and long wheelbase vans.Optional: Bolt-on wheel alignment platform kit (AS SHOWN)

SPECIFICATIONS

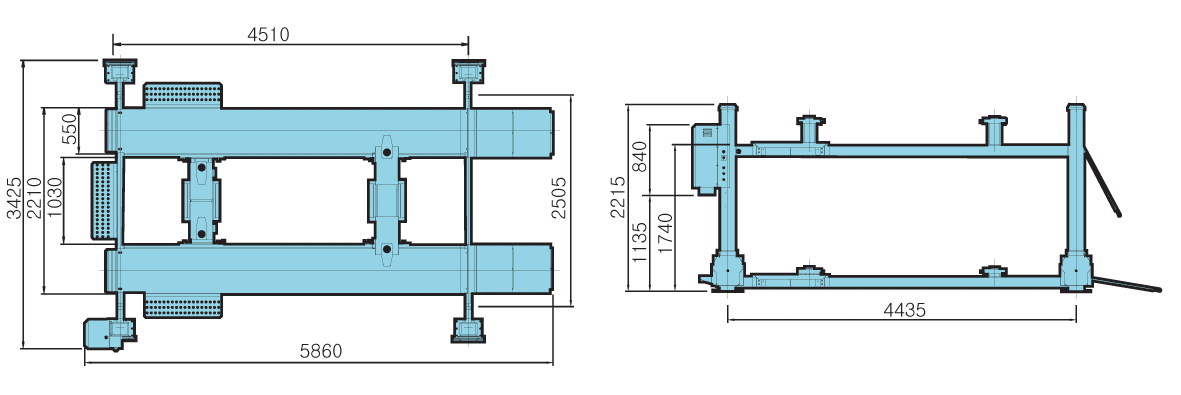

Model: Caizer F45Lifting Capacity: MAIN : 4,500 Kg JACK : 2,500KgMax. Height: MAIN : 1,740 mm JACK : 455 mmMin.Height: MAIN : 174 mm JACK : 235 mmStroke: MAIN : 1,566 mm JACK : 220 mmOverall DIM: Out-Width-In-Width x Length : 3,425 x 2,505 x 5,860 (mm)                   Max.Height : 2,215 (mm)Main Plate: Out-Width x In-Width x Length : 2,210 x 1030 x 5,860 (mm)Ascending Time: Main : Approx. 40 ~ 60 sec Jack : 5 ~ 15 secDescending Time: Main : Approx. 30 ~ 50 sec Jack : 5 ~ 15 secElec & Motor: 1PH : 2.5HP x 4P x 220V x 60Hz                    3PH : 2HP x 4P x 220V / 380V x 60HzControl  :  Control Panel (Push Button)Net Weight  :  ​About 1,600 Kg
