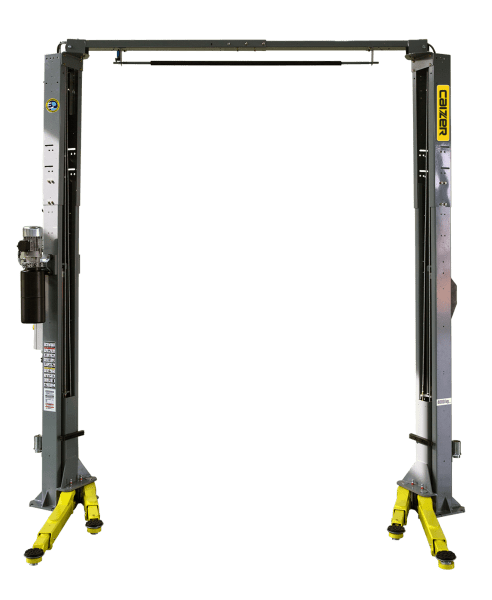

caizer t46+ 4.6t 2 post clear floor hoist
FEATURES
4600kg SWL
Clear floor.Twin RAM type fully sealed hydraulic cylindersHighest quality rotation resistant wire rope balance cablesElectric safety lock release with timer90mm Low profile telescopic lift padsAdjustable cross member height

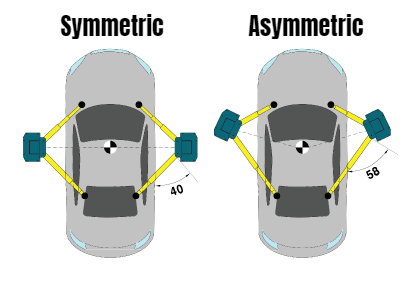

Symmetric or asymmetric installationOptional: Arm tool trays, lift pad extensions, remote controlDual upper limit switches on post and cross memberTop quality Korean Powerpack
SPECIFICATIONS
Lifting Capacity : 4,600 KgMax. Lifting Height : 1,890-1,920mmStroke : 1,800mmLifting Time : Approx 60 sec. (Upgrade powerpack 40 sec)Lowering Time : Approx. 30 - 40 secPower Supply & Motor : 240/415V, 50HzOperating Method : Control box (Optional cable remote control)Net Weight : About 800 Kg

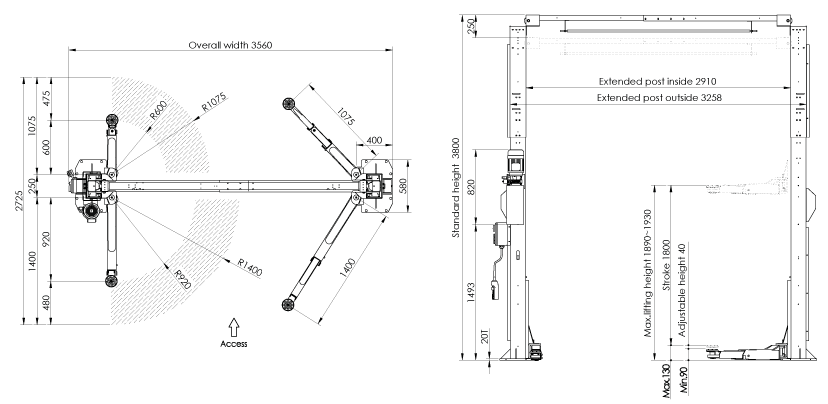

INSTALL OPTION 1: SYMMETRIC POST (ASYMMETRIC ARMS)
.png)

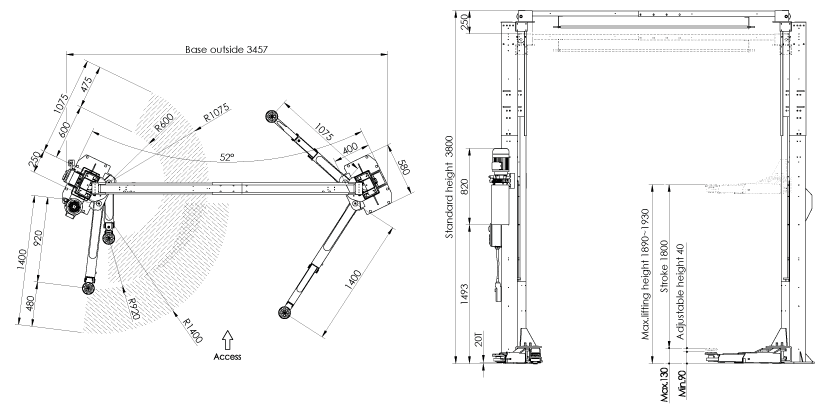

INSTALL OPTION 2: ASYMMETRIC POST
